Mikrotik has Layer 3 Switch product that is Cloud Router Switch series. There are 2 types of CRS that have wireless interfaces, one of which is CRS109-8G-1S-2HnD-IN, this product in addition has 8 gigabit ports that can be switched (master-port), also has 1 Wlan interface. The basic features of CRS have previously been discussed in the article Introduction to Basic Features of Cloud Router Switch
As we already know, wireless interface (wlan) on RB Mikrotik product is not connected with the switch chip. In other words, we can not enable the switch mode (master-port) on the wlan interface. If before using CRS and by switching some ethernet to vlan-access already running, how to be able to do vlan-access via wireless?
We will experiment on how to perform vlan-access via wireless on CRS109-8G-1S-2HnD-IN, where the condition of vlan-access via ethernet switch is already running. The topology is built like the picture below
|
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
Configure R1

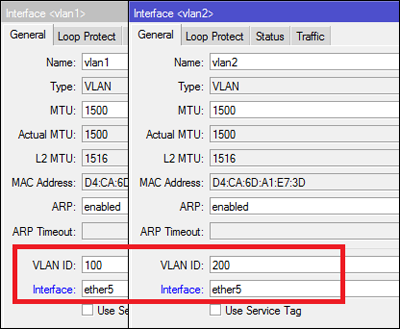

Initial step, of course we have to configure Main Router (R1) as service provider to be distributed through vlan. Define VLAN-ID = 100 and VLAN-ID = 200 in interface ether5.
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
Add IP Address to each Vlan. In the lab this time, for VLan1 we fill it with 10.10.1.1/24 and VLan2 we fill it with 10.10.2.1/24.
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
In this lab, the service that will be passed on both VLan is DHCP
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
Cloud Router Switch Configuration (CRS)
In CRS, to perform vlan-access with switching mode, point the ethernet to be used. For example in the lab this time, point the ether3 and ether4 masters to ether2
Switch Configuration -> Settings, Ingress VLAN Translation, and Egress VLAN Translation.
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
Until this step, DHCP vlan1 should be accessible via ether3 CRS and vlan2 is already accessible through ether4 CRS.
As per the initial topology design, in addition to being distributed via ethernet, vlan-id = 200 will also be distributed via wireless. The next configuration step is to create a new vlan interface with vlan-id = 200 on ether2 (the ether connected to the main Router).
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
 |
| Mikrotik Router Mikrotik Hotspot Wireless VLAN Access on CRS Series |
Until this step, service vlan 100 is passed through ethernet media while vlan200 is passed through ethernet and wireless media. So that DHCP vlan2 10.10.2.1/24 can also be accessed via wireless.
